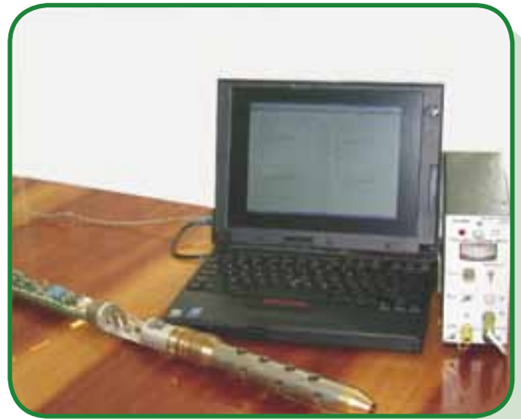

The proposed equipment is intended for by-point measurements, with a given measurement pitch, of three vector components of acceleration, which act on a downhole device under the effect of dynamic processes occurring in a borehole, such as, for instance, flowing of water, oil, gas, etc.

DISTINCTIVE FEATURES AND SPECIFICATONS

• The device is designed for operation using a single-core armored cable of 6 km in length.

• The device contains a point thermometer.

• Data are recorded with an IBM-compatible computer via the COM port.

VN-4008 KEY SPECIFICATIONS

Measurement range: .....................0.05-- 20 mm/c2;

Frequency ranges:

100--500 Hz, 500–5000 Hz, 500–2500 Hz, 2 500–5 000 Hz;

• .Irregularity of the frequency response in the range of 100–5000 Hz : .............................................±15%

Thermometer’s temperature range:............0–120℃

OPERATIONAL CINDITIONS

Maximum temperature in a borehole:.............120℃ Hydrostatic pressure, depending on the hole diameter:................................................ 50÷70 MPa

DIMENSIONS

Downhole device:

Diameter.................................................. 40–48 mm

Length:....................................................... 1 200 мм

Remote control
